EMERALD 50A MPPT
SINE WAVE INVERTER-CHARGER
SMART & SAFE POWER DISTRIBUTION
When connected to the mains power, the inverter-charger has a total charging power and bypass outputpower not exceeding 3600W to protect the mains powe!output socket from overload and potential safety risks.
SILENT MODE
The charging current is set to 20A and the fanremains completely silent, ensuring your sleep isundisturbed

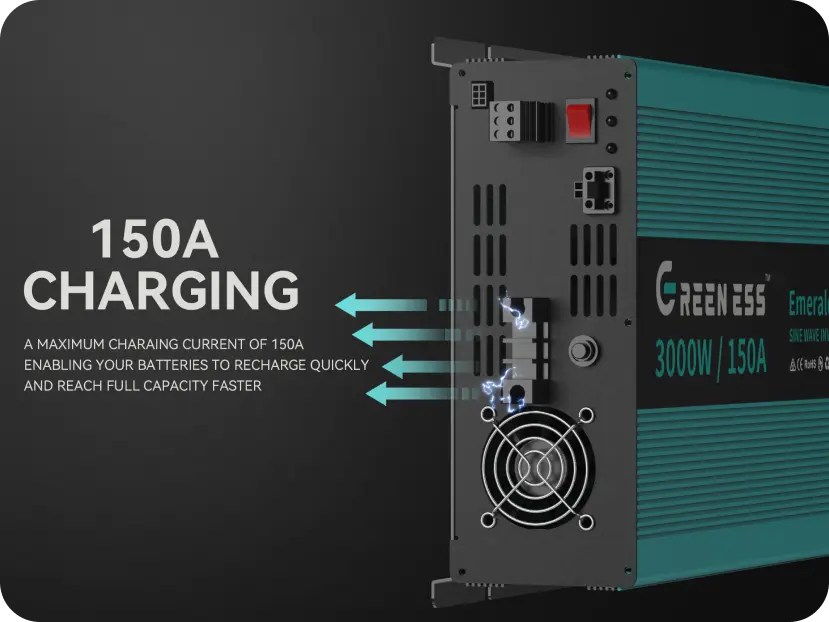

150A Charging
Write one or two paragraphs describing your product or services. To be successful your content needs to be useful to your readers.
Start with the customer – find out what they want and give it to them.
6000W
Write one or two paragraphs describing your product or services. To be successful your content needs to be useful to your readers.
Start with the customer – find out what they want and give it to them.

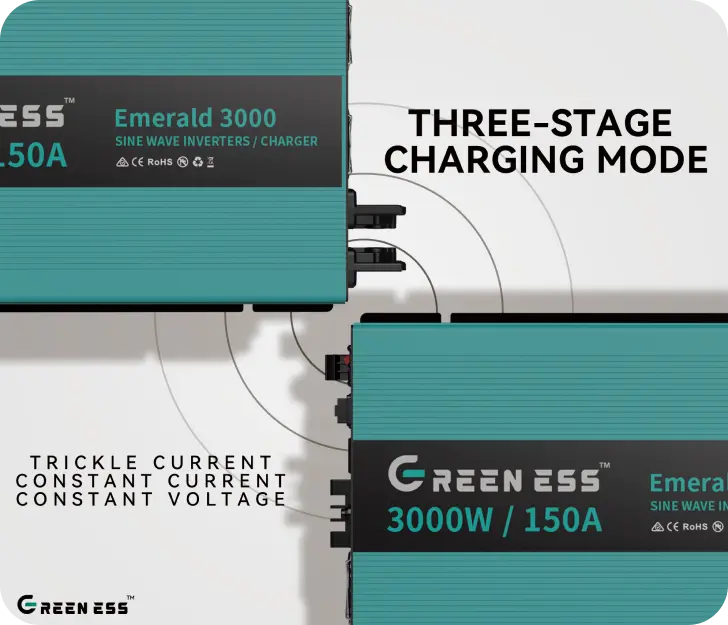

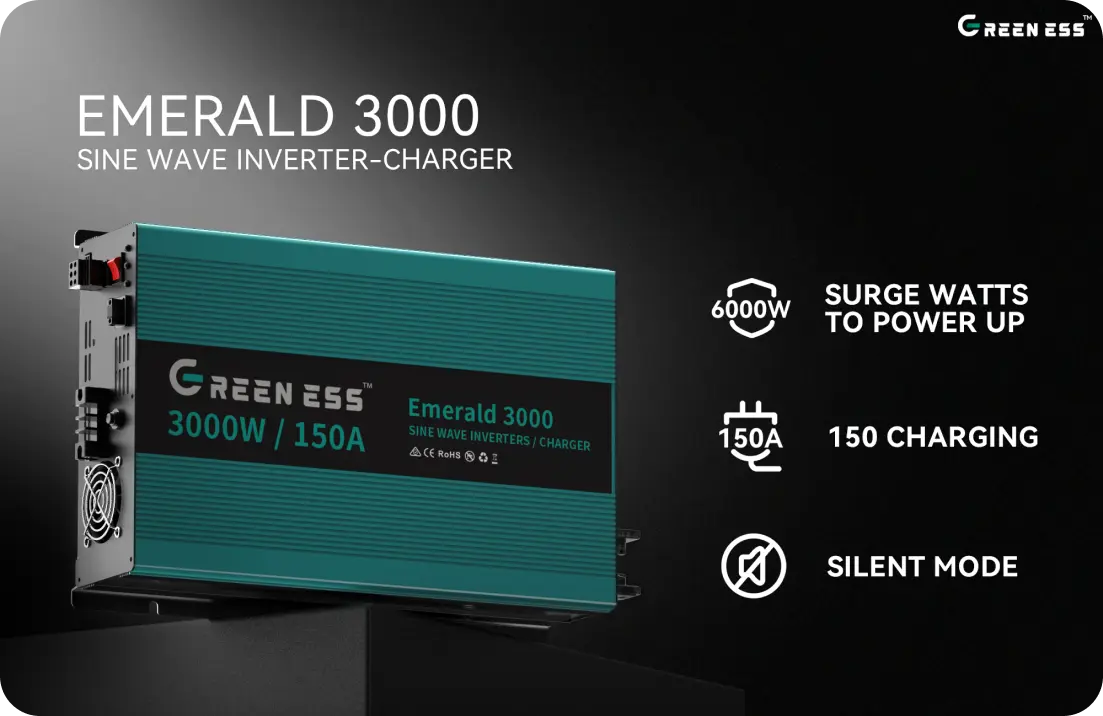

Emerald 3000
Write one or two paragraphs describing your product or services. To be successful your content needs to be useful to your readers.
Start with the customer – find out what they want and give it to them.
6000W
Write one or two paragraphs describing your product or services. To be successful your content needs to be useful to your readers.
Start with the customer – find out what they want and give it to them.
Silent Mode
Write one or two paragraphs describing your product or services. To be successful your content needs to be useful to your readers.
Start with the customer – find out what they want and give it to them.
Technical Specifications
Nominal systemvoltage
Battery type
Battery inputvoltage range
Rated charge current
Rated charge power
Max. conversionefficiency!
Tracking efficiency
Max. PV opencircuit voltage
MPP yoltage range
Equalization voltage
Boast voltage
Float voltage
Low voltage reconnect voltage
Low woltage disconnect voltage
Self-consumption
Temperaturecompensation
(for iead-acid battery)
Relative humidity
Enclosure
Communicationinterface
Grounding
Operating temperature range
Dimensions(LxWxH)(mm)
Net weight
Standard Parameter
12/24/36/48VDC/Auto
Lead-acid / Lithium
8V-68V
50A
625W/12V;1250W/24V;1875W/36V;2500W/48V
98.30%
299.5%
200V (At minimum operating environment temperature)180V (At 25'C environment temperature)
(Battery voltage*2V)-144V
Sealed:14.6V;Flooded:14.8v;User defined:9-17v
Gel:14.2v;Sealed:14.4v;Flooded:14.6v;User-define:9-17V
Gel/Sealed/Flooded:13.8vUser-defined:9-17V
Gel/SealedFlocded:12.6vUser-defined:9-17v
Gel/Sedled/Floodec11.1vUser defined:9-17V
98mA/12V;60mA/24V;50mA/36V;46mA/48V
-3mV/C/2V(Default)
5% to 95% (N.C.)
IP20
RS485(5VDC/200mA,Two RJ45 ports in parallel)
Common negative
-25℃C~+60'C(derating above 45°C)
261x216x119
3.5kg
